Plug Graphite Cast Bronze Self Lube Wear Plates For Industrial Machinery Oil/Gas Aerospace Marine/Defense Tool/Die Plast

JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
Contact Now

Plug Graphite Cast Bronze Self Lube Wear Plates For Industrial Machinery Oil/Gas Aerospace Marine/Defense Tool/Die Plast

Brand Name : bronzelube.com

Model Number : Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free

Certification : Plain Sleeve Bearings Standards met: RoHS

Place of Origin : Self Lube Bearings

MOQ : Bronze Precision Wear Plates & Lubricating Parts made to order

Price : US$0.11 - US$21.11 / Pieces,NEGOTIABLE

Payment Terms : TT IN ADVANCE,L/C,Western Union

Supply Ability : Self Lube Bearing Manufacturing Dimensions Tolerance Assembly

Delivery Time : Shipped in 3-20 work days

Packaging Details : Cartons with good information lable

Material : Aluminum-Bronze With Solid Lubricant

Types : Silde Block,Plate

Description : Solid Lubricating Bearings

Application : Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.

Size : standard,Drawings

Production Feature : Characteristics High load capacity Self-lubricating under dry operation Possibility to use in presence of fluids Good chemical inertia to corrosive agents Wide range of operating temperature Flameproof Easy to mount Standard items widely available Special

Bearing Bushing Factory Price : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Bronze Wear Plates , Self Lubricating - Special Brass Alloy

Self Lubricating Graphite Plugged Bronze Plate : Bronze Wear Plate and Pad for Industrial Machinery, manufacturer of bronze sleeve bushings, we often receive requests for a variety of product types.

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Contact Now

Plug Graphite Cast Bronze Self-Lubricating Wear Plates are designed for use in various industrial applications such as machinery, oil & gas, aerospace, marine, defense, and tool & die plastic industries. These wear plates offer excellent wear resistance and self-lubricating properties, reducing the need for frequent lubrication and maintenance. They are made from graphite cast bronze, a material that is known for its high strength, corrosion resistance, and durability.

In industrial machinery applications, these wear plates are often used in sliding or rotating contact surfaces where friction and wear are a concern. The graphite cast bronze material provides a smooth surface that reduces friction and wear, extending the life of the machinery components.

In oil & gas applications, the wear plates are exposed to harsh environments and conditions such as high temperatures, pressures, and corrosive chemicals. The graphite cast bronze material is able to withstand these extreme conditions, ensuring reliable operation of equipment in these industries.

Aerospace applications also demand high performance and reliability, which is why graphite cast bronze wear plates are a popular choice. They are able to maintain their integrity and function under extreme temperatures and pressures, ensuring the safety and efficiency of aircraft and spacecraft components.

Marine and defense applications also benefit from the use of graphite cast bronze wear plates. In marine environments, the wear plates are exposed to saltwater and other corrosive elements, but the graphite cast bronze material is able to resist corrosion and maintain its performance. In defense applications, the wear plates provide durability and reliability for equipment used in demanding environments.

Lastly, tool & die plastic industries also utilize graphite cast bronze wear plates for their durability and wear resistance. These wear plates are often used in molding and extrusion equipment where precise tolerances and smooth surfaces are critical for the quality of the final product.

Overall, graphite cast bronze self-lubricating wear plates are a versatile and reliable solution for reducing friction and wear in a wide range of industrial applications.

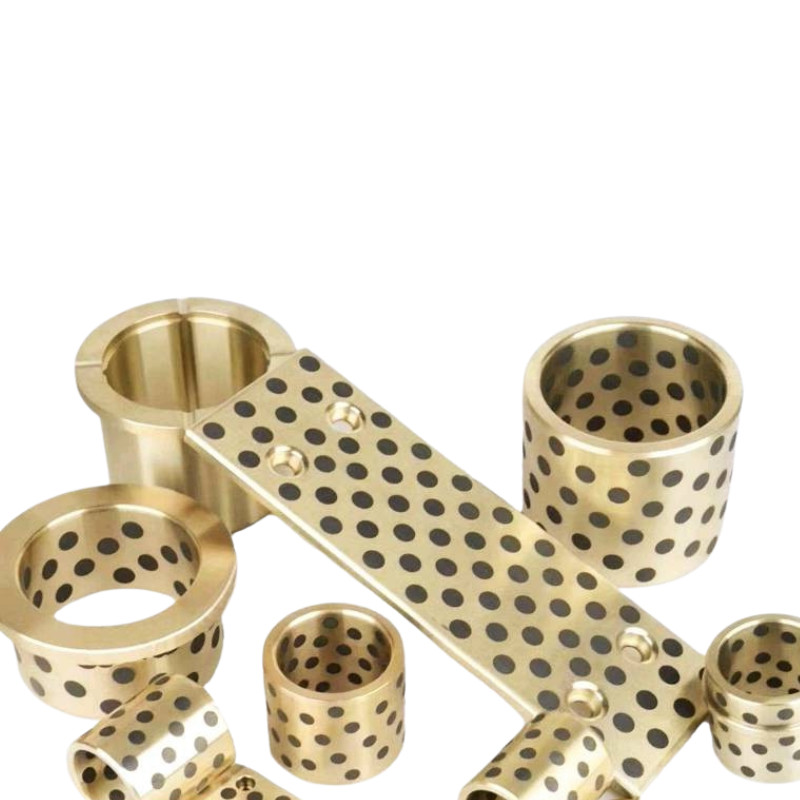

Plug Graphite Cast Bronze Self Lube Wear Plates

For INDUSTRIAL MACHINERY OIL/GAS AEROSPACE MARINE/DEFENSE TOOL/DIE PLAST

Plug Graphite Cast Bronze bushing & plate is a material suitable for heavy loads at low sliding speed, solid lubricant is provided by Graphite with additive, which is inserted into the bronze structure of the bearings.

The base material are CuZn25Al5. The available items in this material are the cylindrical and flanged bush, washers, strips, and special part on customer requests.

NO. DIN Material No. Designation ASTM Standard Proportional Density (g/cm³) 0.2% Strain (MPa) Tensile Strength (MPa) Strain (%) E-modulus (MPa) Hardness (HB) Applications
1 1705 2.1090.01 CuSn7ZnPb B 584 Cu 81 - 85, Sn 6 - 8, Zn 3 - 5, Pb 5 - 7 8.8 120 240 15 106,000 65 Widely utilized in automotive, aerospace, and marine engineering for components requiring good strength and corrosion resistance. Recognized internationally for versatility and performance.
2.1090.03 CuSn7ZnPb B 271 Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 8.8 130 270 13 106,000 75
2.1090.04 CuSn7ZnPb B 505 Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 8.8 120 270 16 106,000 70
2 1705 2.1061.01 CuSn12Pb Not yet standardized Cu 84 - 87, Sn 11 - 13, Pb 1 - 2 8.7 140 260 10 112,000 80 Commonly used in manufacturing bearings, bushings, and components that require high load capacity and wear resistance, especially in marine and industrial applications.
2.1061.03 CuSn12Pb Not yet standardized Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.7 150 280 5 112,000 90
2.1061.04 CuSn12Pb B 505 Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.7 140 280 7 112,000 85
3 1714 2.0975.01 CuAl10Ni B 584 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 270 600 12 122,000 140 Used in marine, aerospace, and heavy machinery for manufacturing bearings and components requiring high strength and durability. Known for extreme loads and high corrosive environments.
2.0975.02 CuAl10Ni B 30 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 300 600 14 122,000 150
2.0975.03 CuAl10Ni B 271 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 300 700 13 122,000 160
2.0975.04 CuAl10Ni B 505 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 300 700 13 122,000 160
4 1709 2.0598.01 CuZn25Al5 B 584 Cu 60 - 67, Al 3 - 7, Fe 1.5 - 4, Mn 2.5 - 5, Zn rest 8.2 450 750 8 115,000 180 Used in heavy-duty bearings, hydraulic components, and marine hardware. Designed for high loads and resistance to corrosive attack.
2.0598.02 CuZn25Al5 B 30 Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 8.2 480 750 8 115,000 180
2.0598.03 CuZn25Al5 B 271 Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 8.2 480 750 5 115,000 190
5 1705 2.1052.01 CuSn12 Not yet standardized Cu 84 - 88, Sn 11 - 13, Pb 1, Ni 2.0, Sb 0.2, P 0.2 8.6 140 260 12 110,000 80 Commonly used in manufacturing bearings, gears, and components requiring high wear resistance. Known for good machinability and corrosion resistance, particularly in seawater environments. All rights to the listed content are reserved by https://www.viiplus.com/
2.1052.03 CuSn12 Not yet standardized Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.6 150 280 8 110,000 90
2.1052.04 CuSn12 Not yet standardized Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.7 140 280 8 110,000 95
Note: Delivery form codes: .01 = sand casting, .02 = gravity casting, .03 = centrifugal casting, .04 = continuous casting.

Plug Graphite Cast Bronze Self Lube Wear Plates For Industrial Machinery Oil/Gas Aerospace Marine/Defense Tool/Die Plast

Characteristics

1.High load capacity

2.Self-lubricating under dry operation

3.Possibility to use in presence of fluids

4.Good chemical inertia to corrosive agents

5.Wide range of operating temperature

6.Flameproof

7.Easy to mount

8.Standard items widely available

9.Special items on demand


Solid Bronze Sliding Block Plug Graphite Cast Bronze Bearing Solid Bronze Plate C86300 | VSB-50P

CHARACTERISTICS

Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

Cast Bronze Bearing with Graphite Plugs

VSB-50P Sliding Block olid Bronze Metallic Self-lubricating Bearings

Solid Lubricant Cast Bronze Bearings Silde Block With Immediate Running Velocity


VSB-50P Sliding Block

Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines

1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can be used in wide range of temperature from -40℃-+300℃


Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block

Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.

Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.

The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.

STRUSTURE


VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.


TECHNICAL DATA


Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm




Chemical Compositions

Product NO.

Chemical Compositions

VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2

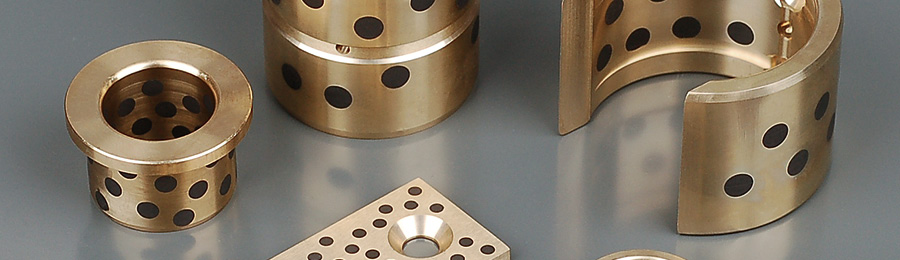

AVAILABILITY

Bearing forms available in standard dimensions

· Cylindrical bushes

· Flanged bushes

· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs


TYPICAL APPLICATIONS


This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...

Plug Graphite Cast Bronze Self Lube Wear Plates For Industrial Machinery Oil/Gas Aerospace Marine/Defense Tool/Die Plast

Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerances




START YOUR
PROJECTWITH AN APPLICATION ENGINEER

thrust washer&plate inch size
