Oil Free Bushings Copper Alloy Thrust Type MPKZ30-20

Product Categories
JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
Contact Now

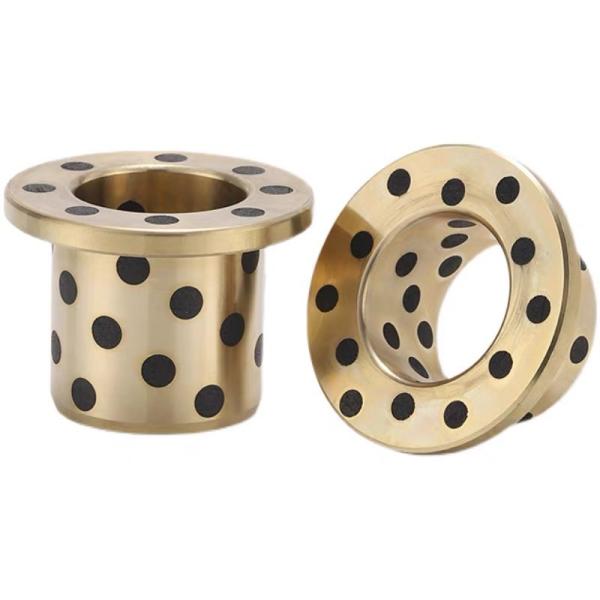

Oil Free Bushings Copper Alloy Thrust Type MPKZ30-20

Brand Name : REPLACEMENT PLAIN BEARINGS

Model Number : Copper Alloy Thrust Type

Certification : ISO9001:2008 CuSn8, CuSn6.5, Brass

Place of Origin : Bushing Manufacturer

MOQ : MATE-TO-ORDER CUSTOM BUSHINGS

Price : Sliding Bronze Bearing Dimensions Tolerance,Stock Price

Payment Terms : TT IN ADVANCE,L/C,Western Union

Supply Ability : STANDARD TOLERANCE BUSHINGS

Delivery Time : 15~20 work days

Packaging Details : Export Cartons,Customizable,Wooden Cases

Material : Bronze

Feature : Oil Free Bushings

Lubrication : Oil or Grease

Bearing Bushing Factory Price : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Self-Lubricating Sintered Bronze Bushing

Bushing Material : Graphite Impregnated Brass

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Application : Industrial

Corrosion Resistance : Excellent

Friction Coefficient : Low

Load Capacity : High

Product Name : Bronze Sleeve Bushings

Shape : Cylindrical

Contact Now

Oil-Free Bushings - Copper Alloy Thrust Type (MPKZ30-20) and Related Products

Oil-Free Bushings made from Copper Alloy and featuring a Thrust Type design, such as the MPKZ30-20 model, are precision-engineered components that provide exceptional wear resistance and self-lubricating properties. The use of copper alloy as the primary material ensures durability and high mechanical strength, making these bushings suitable for high-load and high-friction applications.

The thrust type design of these bushings allows them to effectively handle thrust loads, making them ideal for use in rotating or reciprocating motion applications. The self-lubricating nature of the material eliminates the need for regular lubrication, reducing maintenance requirements and operational costs.

The MPKZ30-20 model, specifically, is tailored to meet the demands of specific industrial applications. Its dimensions and tolerances are carefully controlled to ensure a perfect fit and optimal performance. Wh used in machinery, pumps, motors, or other industrial equipment, these bushings provide a smooth and efficient operating surface that helps reduce friction and wear.

Overall, Oil-Free Bushings made from Copper Alloy with a Thrust Type design, like the MPKZ30-20 model, are a cost-effective and long-lasting solution for industrial applications that require oil-free, self-lubricating components.

MPKZ30-20 Bushings

Material: High Tensile Brass Alloy with Embedded Solid Lubricant.
Features: Self-lubricating for long-term wear resistance.
MPSZ 10-12 and MPKZ 10-12 Bushings

Material: Graphite Impregnated Brass.
Specifications:
Maximum Allowable PV Value Range: 1.1 to 2.0 N/mm²•m/s.
Maximum Allowable PV Value: 1.65 N/mm²•m/s.
Maximum Allowable Load: 29 N/mm².
Maximum Allowable Velocity: 0.5 m/s.
Mounting Hole Fits: H7.
Operating Temperature Range: -40 to 150℃.
Copper Alloy Straight Column Bushing

Material: Bronze with Graphite.
Use: Guide bush with a collar for centering between plates; self-lubricating to reduce maintenance.

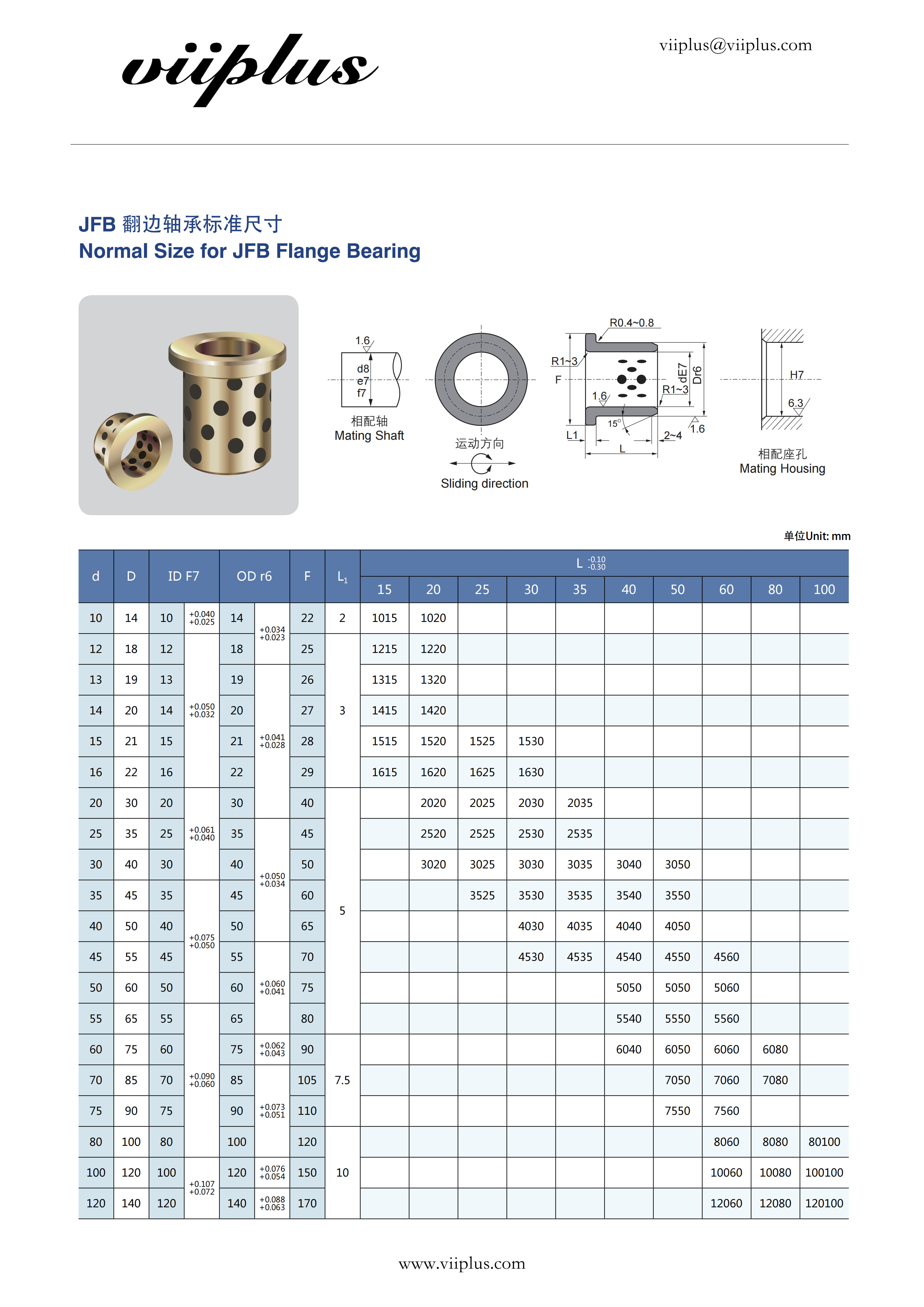

Bronze Sleeve Bushing with Flange

Type: Graphite Plugged Flanged Bronze Bushing.
Purpose: Provides self-lubrication in mechanical systems, minimizing the need for external lubricants.
These bushings are designed for various industrial applications where durability and low maintenance are key. The integration of solid lubricants like graphite in the brass or bronze alloy ensures smooth operation and longevity.

Oil Free Bushings Copper Alloy Thrust Type MPKZ30-20

Specifications

Part Number - L
MPGZ10
MPSZ12
MPKZ16		 -
-
-		 15
15
20
Part Number L Dr6 H t Housing Dia. (Recommended Dimension)
Type dE7 Reference Dimension Tolerance (H7)
MPGZ
(Standard)		 6 +0.032
+0.020		 10 12 12 +0.034
+0.023		 22 3 12 + 0.018
0
8 +0.040
+0.025		 10 12 15 14 25 14
10 10 12 15 20 16 16
12 +0.050
+0.032		 10 12 15 20 25 18 30 18
13 12 15 20 25 19 +0.041
+0.028		 19 + 0.021
0
15 12 15 20 25 21 35 21
16 12 15 20 25 30 22 22
18 14 20 25 30 35 24 40 24
20 +0.061
+0.040		 14 20 25 30 35 40 28 45 5 28
25 14 20 25 30 35 40 33 +0.050
+0.034		 50 33 + 0.025
0
30 20 25 30 35 40 38 55 38
35 +0.075
+0.050		 20 25 30 35 40 44 65 44
40 25 30 35 40 45 50 50 70 7 50
50 30 35 40 45 50 60 62 +0.060
+0.041		 90 8 62 + 0.030
0
Part Number L Dm6 MPSZ MPKZ Housing Dia.
(Recommended Dimension)
H Mounting Hole t H Mounting Hole Accessories:
Hex Socket Low Head Cap Screw		 t
Type dF7 P.C.D d1 d2 h Flat-head
Countersunk Screw		 P.C.D d1 d2 h Reference Dimension Tolerance (H7)
MPSZ
(Flat-head Countersunk Screw Hole)
MPKZ
(Low Head Screw Hole)		 6 +0.022
+0.010		 10 12 10 +0.015
+0.006		 25 15 8.5 3.5 2.5 M3 3 25 17 6 3.5 2.2 M3-10x2 pcs. 4 10 + 0.015
0
8 +0.028
+0.013		 12 15 12 +0.018
+0.007		 28 18 27 19 12 + 0.018
0
10 12 15 20 14 30 20 29 21 14
12 +0.034
+0.016		 12 15 20 18 40 28 36 26 7.5 4.5 3 M4-12x2 pcs. 5 18
15 12 15 20 21 +0.021
+0.008		 50 35 39 29 M4-12x4 pcs. 21 + 0.021
0
16 12 15 20 25 30 22 40 30 22
18 20 25 30 24 42 32 24
20 +0.041
+0.020		 20 25 30 35 40 28 13 6 3.5 M5 5 49 38 9 5.5 3.7 M5-16x4 pcs. 6 28
25 20 25 30 35 40 33 +0.025
+0.009		 55 40 54 43 33 + 0.025
0
30 20 25 30 35 40 38 60 45 63 50 11 6.6 4.2 M6-20x4 pcs. 8 38
35 +0.050
+0.025		 20 25 30 35 40 44 70 52 69 56 44
40 25 30 35 40 45 50 80 60 16 7 4.5 M6 7 82 66 14 9 5.2 M8-25x4 pcs. 10 50
50 30 35 40 45 62 +0.030
+0.011		 100 75 8 94 78 62 + 0.030
0

Basic Information

Bushing Material Graphite Impregnated Brass Maximum Allowable PV Value Range(N/mm2•m/s) 1.1 to 2.0 Maximum Allowable PV Value(N/mm2•m/s) 1.65
Maximum Allowable Load(N/mm2) 29 Maximum Allowable Velocity(m/s) 0.5 Mounting Hole Fits H7
Operating Temperature Range(℃) -40::150

Артикул: MPGZ6-10 MPGZ6-12 MPGZ8-10 MPGZ8-12 MPGZ8-15 MPGZ10-10 MPGZ10-12 MPGZ10-15 MPGZ10-20 MPGZ12-10 MPGZ12-12 MPGZ12-15 MPGZ12-20 MPGZ12-25 MPGZ13-12 MPGZ13-15 MPGZ13-20 MPGZ13-25 MPGZ15-12 MPGZ15-15 MPGZ15-20 MPGZ15-25 MPGZ16-12 MPGZ16-15 MPGZ16-20 MPGZ16-25 MPGZ16-30 MPGZ18-14 MPGZ18-20 MPGZ18-25 MPGZ18-30 MPGZ18-35 MPGZ20-14 MPGZ20-20 MPGZ20-25 MPGZ20-30 MPGZ20-35 MPGZ20-40 MPGZ25-14 MPGZ25-20 MPGZ25-25 MPGZ25-30 MPGZ25-35 MPGZ25-40 MPGZ30-20 MPGZ30-25 MPGZ30-30 MPGZ30-35 MPGZ30-40 MPGZ35-20 MPGZ35-25 MPGZ35-30 MPGZ35-35 MPGZ35-40 MPGZ40-25 MPGZ40-30 MPGZ40-35 MPGZ40-40 MPGZ40-45 MPGZ40-50 MPGZ50-30 MPGZ50-35 MPGZ50-40 MPGZ50-45 MPGZ50-50 MPGZ50-60 MPKZ6-10 MPKZ6-12 MPKZ8-12 MPKZ8-15 MPKZ10-12 MPKZ10-15 MPKZ10-20 MPKZ12-12 MPKZ12-15 MPKZ12-20 MPKZ15-12 MPKZ15-15 MPKZ15-20 MPKZ16-12 MPKZ16-15 MPKZ16-20 MPKZ16-25 MPKZ16-30 MPKZ18-20 MPKZ18-25 MPKZ18-30 MPKZ20-20 MPKZ20-25 MPKZ20-30 MPKZ20-35 MPKZ20-40 MPKZ25-20 MPKZ25-25 MPKZ25-30 MPKZ25-35 MPKZ25-40 MPKZ30-20 MPKZ30-25 MPKZ30-30 MPKZ30-35 MPKZ30-40 MPKZ35-20 MPKZ35-25 MPKZ35-30 MPKZ35-35 MPKZ35-40 MPKZ40-25 MPKZ40-30 MPKZ40-35 MPKZ40-40 MPKZ40-45 MPKZ50-30 MPKZ50-35 MPKZ50-40 MPKZ50-45 MPSZ6-10 MPSZ6-12 MPSZ8-12 MPSZ8-15 MPSZ10-12 MPSZ10-15 MPSZ10-20 MPSZ12-12 MPSZ12-15 MPSZ12-20 MPSZ15-12 MPSZ15-15 MPSZ15-20 MPSZ16-12 MPSZ16-15 MPSZ16-20 MPSZ16-25 MPSZ16-30 MPSZ18-20 MPSZ18-25 MPSZ18-30 MPSZ20-20 MPSZ20-25 MPSZ20-30 MPSZ20-35 MPSZ20-40 MPSZ25-20 MPSZ25-25 MPSZ25-30 MPSZ25-35 MPSZ25-40 MPSZ30-20 MPSZ30-25 MPSZ30-30 MPSZ30-35 MPSZ30-40 MPSZ35-20 MPSZ35-25 MPSZ35-30 MPSZ35-35 MPSZ35-40 MPSZ40-25 MPSZ40-30 MPSZ40-35 MPSZ40-40 MPSZ40-45 MPSZ50-30 MPSZ50-35 MPSZ50-40 MPSZ50-45

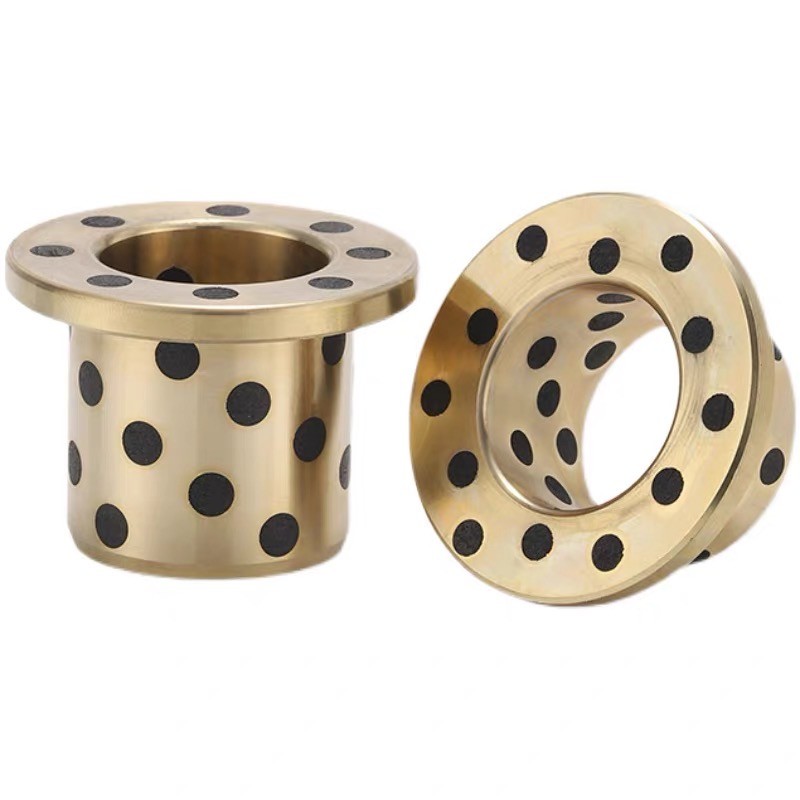

Oil Free Bushings Copper Alloy Thrust Type MPKZ30-20

MATERIAL: Bronze Graphite

Bronze material

CuZn25Al6Fe3Mn3

+SL2

CuSn5Pb5Zn5

+SL2

CuAl10Fe5Ni5

+SL2

CuSn12

+SL2
Cu% Rest 85 80 88
Sn% -- 5 -- 12
Pb% -- 5 -- --
Zn% 25 5 -- --
Al% 6 -- 10 --
Ni% -- -- 5 --
Fe% 3 -- 5 --
Mn% 3 -- -- --
Density 8.2 g/cm3 8.8 g/cm3 8.5 g/cm3 8.8 g/cm3
Hardness >HB210 >HB70 >HB150 >HB80
Max. Load Pressure 100 N/mm2 40 N/mm2 50 N/mm2 45 N/mm2
Max. Linear Speed 0.5 m/s(dry) 0.4 m/s(dry) 0.25 m/s(dry) 0.5 m/s(dry)
Max. PV 1.65 N/mm2 * m/s 1.00 N/mm2 * m/s 1.25 N/mm2 * m/s 1.20 N/mm2 * m/s
Tensile Strength >750 N/mm2 >200 N/mm2 >500 N/mm2 >360 N/mm2
Elongation >12 % >15 % >10 % >8 %
Temperature Limit -40 ~ +300 oC -40 ~ +250 oC -40 ~ +400 oC -40 ~ +300 oC

Products Standard: ISO 4379 (replaces DIN 1850)

Solid Lubricants

Code Material Features Application
SL2 Graphite composite

Low friction
Chemical resistant
Low cost
Temperature limit 400oC

 Widely used for machinery
SL4 +MoS2 composite

Water contacting lubricating
Longer life
Temperature limit 300oC
