The Bronze Wrapped Bushing Sliding Bush 5025F is a precision-crafted component designed for sliding applications. The sliding bush features a bronze wrapping, typically made from a high-grade bronze alloy, that offers excellent wear resistance, corrosion resistance, and durability.
The 5025F designation likely refers to the specific dimensions or model number of this sliding bush. However, regardless of the exact measurements, the bronze wrapping ensures a smooth and reliable sliding surface.
Bronze Wrapped Bushing Sliding Bushes are commonly used in various industries and applications where a low-friction and long-lasting sliding interface is crucial. They are particularly suitable for applications involving heavy loads, high speeds, or harsh environmental conditions.
The bronze wrapping provides a hard and durable surface that can withstand continuous sliding contact and resist wear and tear. This results in extended service life and reduced maintenance requirements.
In summary, the Bronze Wrapped Bushing Sliding Bush 5025F is a high-quality sliding bush designed for demanding applications. The bronze wrapping ensures a smooth and reliable sliding surface, providing excellent wear and corrosion resistance.
Bronze Wrapped Bushing Sliding Bush 5025F
Premium Flanged Wrapped Bronze Bushings - Large Range Of Sizes!
Get Verified Bronze Bushing Sellers for Kevlar Fiber and Stainless Steel kevlar fabric-lined Bushings From China
See Our Online CUSN8 BRONZE bushing Catalog & Request A Quote! Sleeve Bushing Bearings & Flange Materials Made To The Highest Standards. Shop Our Huge Range Of Sizes! Made to order from china. Top Customer Service. Unmatched Product Quality.
Quality bronze bushings (wall thickness 2.5mm) made by bronzegleitlager.com Order Today, discount price! Self-lubricating flange bronze bushings 5025F 50x55x65x25mm WF-WB802 WB702 FB092 slide bearing bronze wrapped bushing sliding bush.
Other Bushing Type Recommendations For You
Bronze Sleeve & Flanged Bearings. bronze bushing & Custom size. leading bronze bushing Manufacturer. In Stock. bronze wrapped bushing sliding bush bronze bushing cheap price.

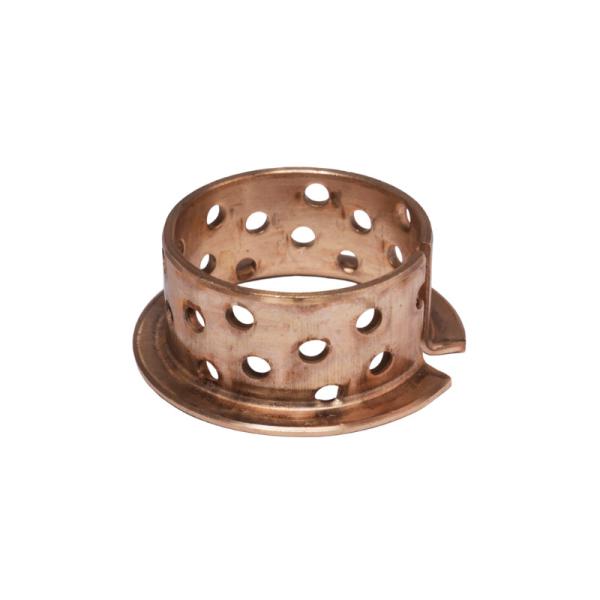

Wrapped bronze bushing slide bearing
Model Number: WF-WB802, FB092
Specificaiton: 5025F, 50x55/65x25mm
Inner diameter: 50mm
Outer diameter: 55mm (wall thickness 2.5mm)
Flange diameter: 65mm
Totally Height: 25mm
Standard: DIN1494 / ISO3547
Material: CUSn8P Bronze
Hardness: HB110- HB125

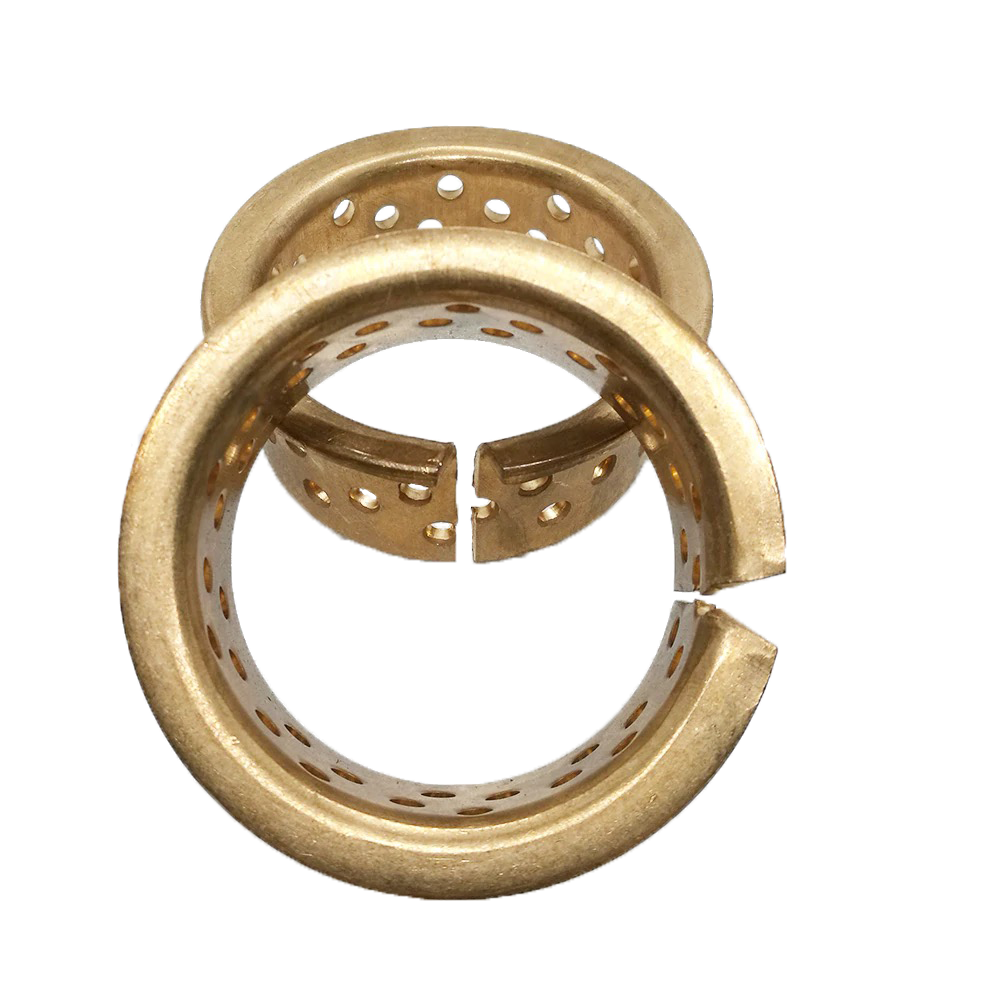

Flange wrapped bronze bushings with lubricating oil holes
-
Ultra-high load capacity
-
Good lubrication performance
-
Wide operating temperature range
-
Easy to install
lubricating
Lubrication should be achieved through the shaft or radially through the bearing housing. All commonly used grease types or oils can be used.
Installation
WF-WB802 FB092 5025F CuSn8P Slide Bearing Bushing 50x55x65x25mm Split Wrapped Bronze Bush sleeve self lubricating plain bearing should be pressed into the H7 tolerance housing. The inner diameter tolerance of the sliding bearing is H9.
Application field
Forestry, construction and agricultural machinery, cranes, forklifts and lifting equipment, etc.

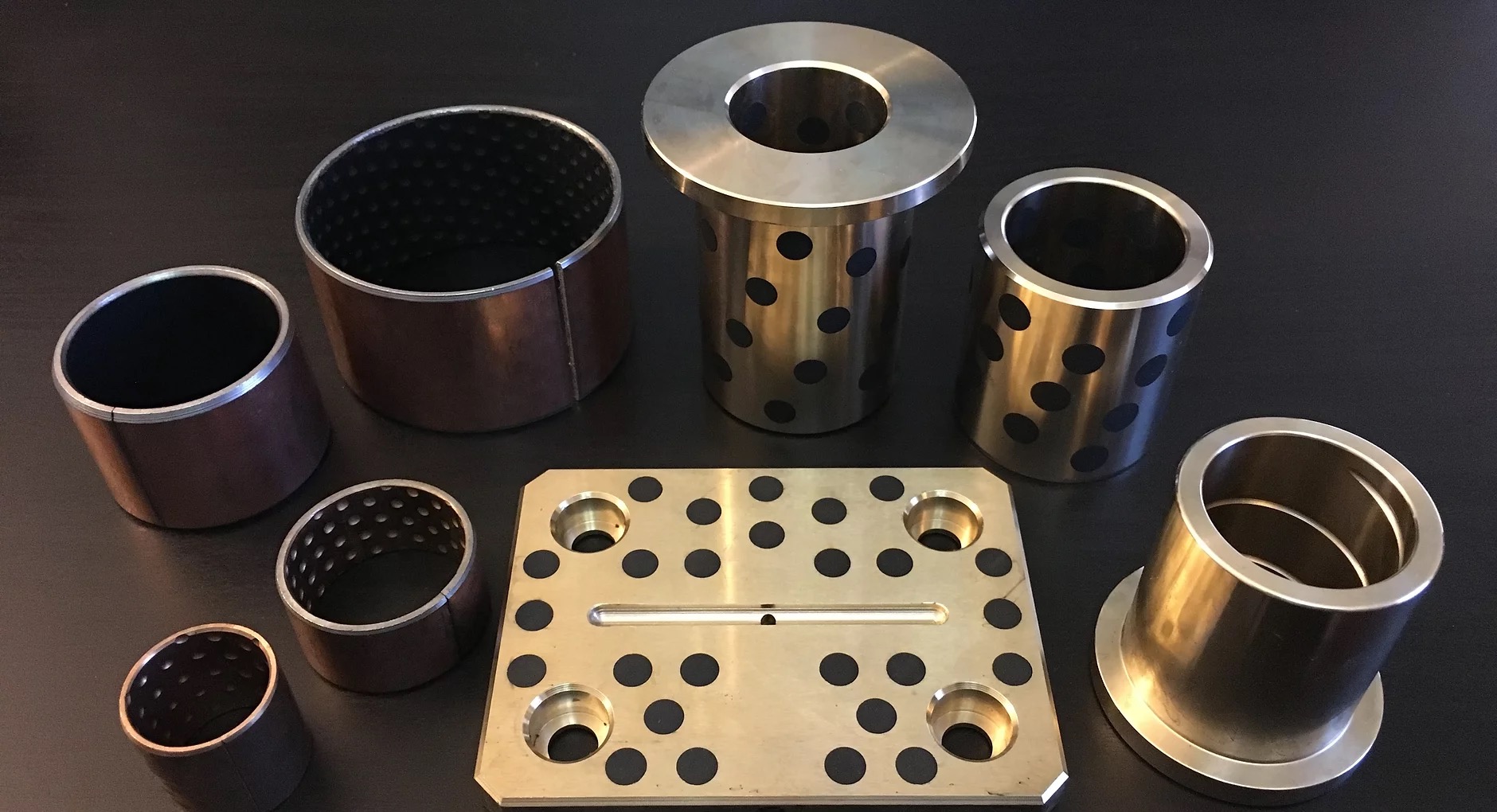

Bronze Bushings Types
Ordinary cylindrical bearings, flanged bearings, thrust washers, sliding plates.
Wrapped Bronze Bushing Material
Characteristics
– Extra high load capacity
– Good lubrication properties
– Wide temperature range
– Easy to assemble
| Bearing Properties | Unit | Value |
| Bearing Properties | Unit | Value |
| Maximum specific load Static | N/mm² Psi | 150 |
| Maximum specific load dynamic | N/mm² Psi | 60 |
| Maximum sliding speed | m/s fpm | 2 |
| Maximum PxV factor | N/mm² · m/s | 3 |
Maximum PxV factor
(short periods) | N/mm² · m/s | 4 |
| Dry coefficient of friction | µm | 0.06 – 0.15 |
| Maximum temperature | °C °F | +150°C |
| Minimum temperature | °C °F | -40°C |
| Shaft finish Ra (recommended) | µm | 0.4 Ra |
| Shaft hardness (recommended) | HB | >200 |
| Operating Conditions | |
| Dry | Fair |
| Oil | good |
| Grease | Very good |
| Water | Fair
|
Assembly For Bronze Sleeve Bushings
The bearings are intended to be pressed into housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.
