Oiles 500SP1 Spherical Bearings Unit Bearings Self Lubricating

Name: Oiles 500SP1 Spherical Bearings Unit Bearings Self Lubricating
Brand: VIIPLUS
Price: 1 USD

MOQ : negotiable

Price : Factory Price

Payment Terms : T/T

Supply Ability : Spherical Bearings Unit bearings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

Delivery Time : 7-25 work days

Packaging Details : EXPORT CARTON WOOD PALLET WOODEN CASE

Brand Name : VIIPLUS

Model Number : Bearings Unit bearings

Certification : ISO Standard

Place of Origin : made in china

Material : Bearings Unit bearings

Item : Bearings Unit bearings

Feature : High precision，self-lubricating

Get A Better Quote : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing

Gleitalger : A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Contact Now

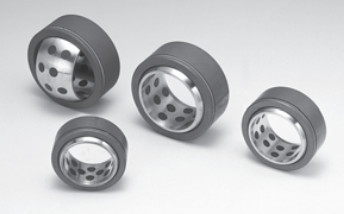

Oiles 500SP1 Spherical Bearings Unit bearings

The Oiles 500SP1 spherical bearings are unit bearings that feature self-lubricating properties, making them an ideal choice for a wide range of industrial applications. These bearings are designed to provide smooth and reliable operation with minimal maintenance requirements.

The spherical shape of the bearings allows for freedom of movement in multiple directions, making them suitable for applications where misalignment or movement is expected. The self-lubricating material used in these bearings ensures a constant and even lubrication layer, reducing friction and wear.

The Oiles 500SP1 spherical bearings are also known for their durability and long service life. They can withstand high loads and operate in harsh environments, making them a reliable solution for demanding applications.

Wh it's in machinery, automotive components, or any other industrial equipment, the Oiles 500SP1 spherical bearings with self-lubricating properties offer a convenient and efficient bearing solution that requires minimal maintenance and upkeep.

Feature

●Conforms to the ISO Standard E type bearings. Compatible with them dimensionally. High precision.

●The inner surface of the inner race is subject to sliding. The outer surface of the inner race bears self-aligning.

●Applicable to higher loads than other self-lubricating spherical bearings.

●Applicable to large oscillating angles in circumferential oscillating motion.

●Serviceable without the need for lubrication. Features quite long service life.

The outer race is split into two parts.
Assemble them as shown below so
that the split parts are not located
at the maximum load point. the
bearing to fix it. Press it slowly with
a vice or press by the intermediation
of a as shown below. Chamfering the
housing end is more effective.

Part No.

Allowable dynamic load (Note 1)

N｛kgf｝

Allowable static load (Note 2)

N｛kgf｝

SPS-2035E

SPS-2542E

SPS-3047E

SPS-3555E

SPS-4062E

SPS-4568E

SPS-5075E

SPS-6090E

SPS-70105E

SPS-80120E

SPS-90130E

SPS-100150E

SPS-110160E

SPS-120180E

9,410｛ 960｝

15,600｛ 1,600｝

21,100｛ 2,160｝

27,400｛ 2,800｝

34,500｛ 3,520｝

44,100｛ 4,500｝

54,900｛ 5,600｝

84,700｛ 8,640｝

109,000｛11,200｝

141,000｛14,400｝

176,000｛18,000｝

215,000｛22,000｝

237,000｛24,200｝

329,000｛33,600｝

23,500｛ 2,400｝

39,200｛ 4,000｝

52,900｛ 5,400｝

68,600｛ 7,000｝

86,200｛ 8,800｝

109,000｛11,200｝

137,000｛14,000｝

211,000｛21,600｝

274,000｛28,000｝

353,000｛36,000｝

441,000｛45,000｝

539,000｛55,000｝

593,000｛60,500｝

823,000｛84,000｝
