The PRMF909550 bronze sleeve bushing, with its metric flange size, is a high-performance bearing solution designed for applications requiring durability, precision, and reliability. Bronze, a copper-based alloy, is chosen for its superior strength, wear resistance, and corrosion resistance, making it ideal for use in a wide range of industrial and mechanical applications.
The metric flange size ensures compatibility with metric-based equipment and systems, simplifying installation and replacement. The sleeve bushing design provides a smooth and precise bearing surface, minimizing friction and wear while maximizing the life of the bearing.
The PRMF909550 bronze sleeve bushing is suitable for a variety of applications, including but not limited to, pumps, motors, compressors, and other rotating machinery. Its durability and reliability make it a trusted choice for maintaining smooth and efficient operation in demanding environments.
In addition to its superior material properties and design, the PRMF909550 bronze sleeve bushing also offers ease of installation and maintenance. Its flange design allows for secure mounting, while its sleeve construction provides easy removal and replacement when necessary.
Overall, the PRMF909550 bronze sleeve bushing with metric flange size is an excellent choice for any application requiring a high-performance, durable, and reliable bearing solution.
global brass and copper
Tractor Parts Lubricated Shaft Sleeve Bronze Bearings Bushing
Viiplus Specialized In PRMF909550 Collar Bearing 909550 Bronze Bushing Sleeve Bearings, Metric Flange Size, Production, And Sale Of Wrapped Bronze Bearings.
BRONZE MESH BUSHING
Robust CuSn8P bronze sheet
Large Inventory of Bronze Bushings, Bronze Bearing and Self-lubricating Wear Plates. Gleitlager. Bushing Sleeve bearing. Bushes Catalogs and Brochures Available.
Brass bushings
Component: Flanged bushings PRMF, FB090F 9050F 90x95/110x50 PRMF 909550. FB090F 9060F 90x95/110x60 PRMF 909560. FB090F 9070F 90x95/110x70 PRMF 909570. FB090F 9080F
Other bearings. Plain bearings, excl. spherical plain bearings. Outer rings and washers
- Model Number: PRMF 909550
Inner Diameter:90mm Outer Diameter:95mm Width:50mm
Reference speed:- Limiting speed:-
Type:Bearings, units, and housings Plain bearings Bushings, thrust washers and strips Bushings
Details: Bushings
PRMF 909550 wrapped bronze bearings
Description
SKF PRMF 909550

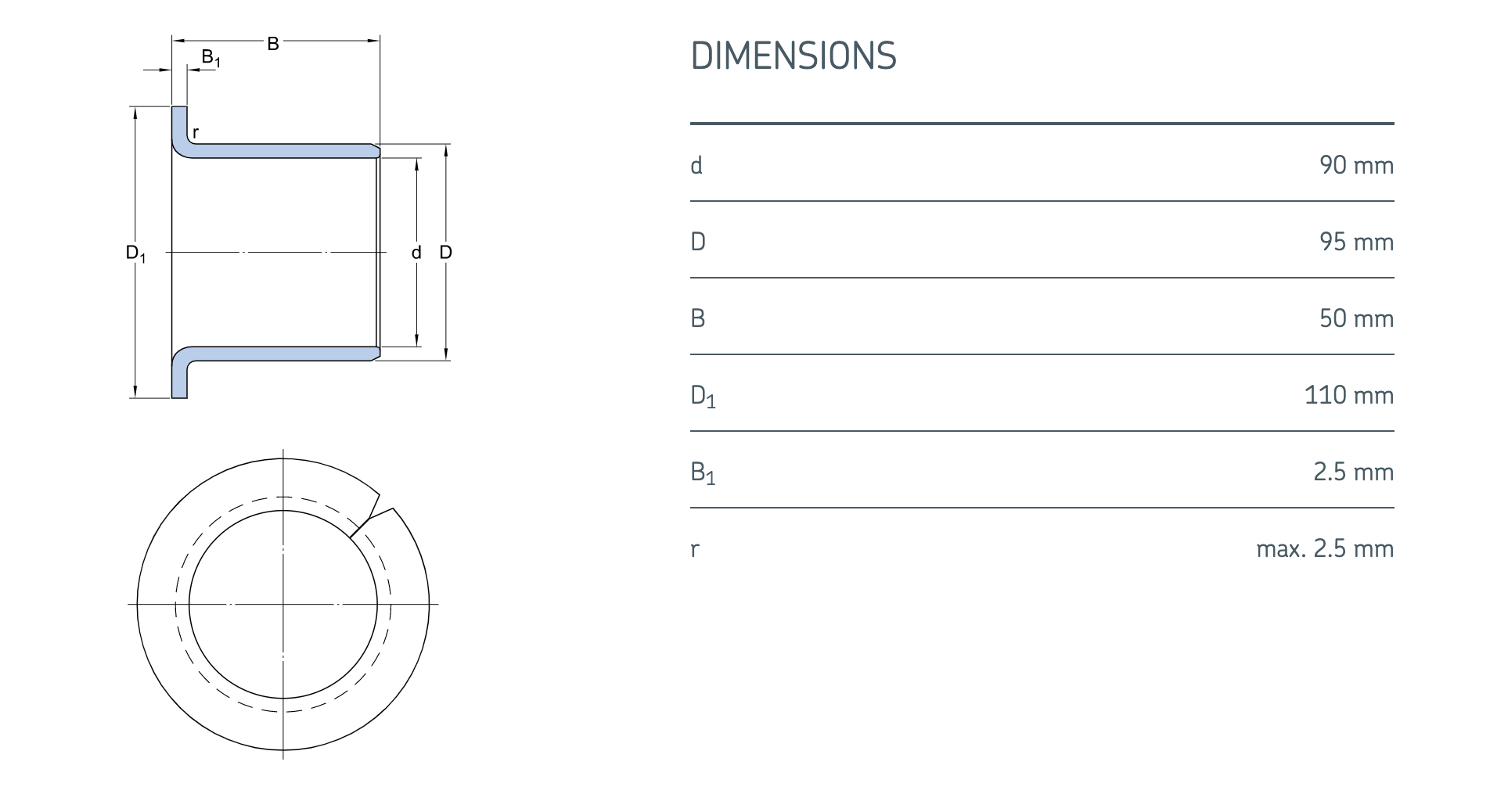

90MM Nominal Bore; 95MM Nominal Outside Diameter; 50MM Length Thru Bore; Bushing With Flange Split Profile; Wrapped Bronze; 110MM Flange Outside Diameter; 2.5MM Flange Thickness
Bronze Wrapped Bushes, Bronze Bushing Bearing, Wrapped Bronze Bearing
Bronze Bushing Manufacturer
Minimum Buy Quantity
N/A
Weight / Kilogram
0
Product Group - BDI
B04264
Profile
Bushing With Flange Split
Material Description
Wrapped Bronze
Inch - Metric
Metric
Category - BDI
Sleeve Bearings
UNSPSC
31171515
Harmonized Tariff Code
8483.30.80.90
Noun
Bearing
Keyword String
Plain
Manufacturer URL
https://www.viiplus.com
Manufacturer Item Number
Weight / LBS
0.77162
Long Description
90MM Nominal Bore; 95MM Nominal Outside Diameter; 50MM Length Thru Bore; Bushing With Flange Split Profile; Wrapped Bronze; 110MM Flange Outside Diameter; 2.5MM Flange Thickness
Nominal Outside Diameter
3.74 Inch | 95 Millimeter
Flange Outside Diameter
4.331 Inch | 110 Millimeter
Flange Thickness
0.098 Inch | 2.5 Millimeter
Nominal Bore
3.543 Inch | 90 Millimeter
Length Thru Bore
1.969 Inch | 50 Millimeter
Sleeve Bushing, Tin Bronze Bearing, Wrapped Bronze Bushing With Diamond Pockets 090 - Cylindrical & Flanged Metric Size
Self-lubricating bearings feature precision tolerances, proprietary internal geometries and quality self-lubricating materials. our bronze, cylindrical bushes, flanged bushes, thrust washers, sliding bearings, precision and housed unit bearings deliver strong performance, consistently and reliably.
To this day, VIIPLUS’s founding vision of making the world move more efficiently and reliably remains at the core of our business.
As the china supplier of self-lubricating bearings, The VIIIPLUS Company applies its deep knowledge of metallurgy, tribology and cast systems to improve the reliability and efficiency of equipment, machinery and energy worldwide.
VIIPLUS is the perfect choice for your business Self-lubricated Parts needs.
FB090 gleitlagerbuchsen is made of high quality alloy, hot rolled phosphor tin bronze. The sliding bearings are specially designed to withstand heavy loads and are shock resistant. The entire bearing sliding surface is composed of lubrication cavities. These lubrication cavities form a lubricating film that can reduce friction during start-up and operation. FB090 is suitable for radial, oscillating and axial movement, especially suitable for medium and high loads.
Slef-lubricating Bronze Bearing | High Quality, Factory Price

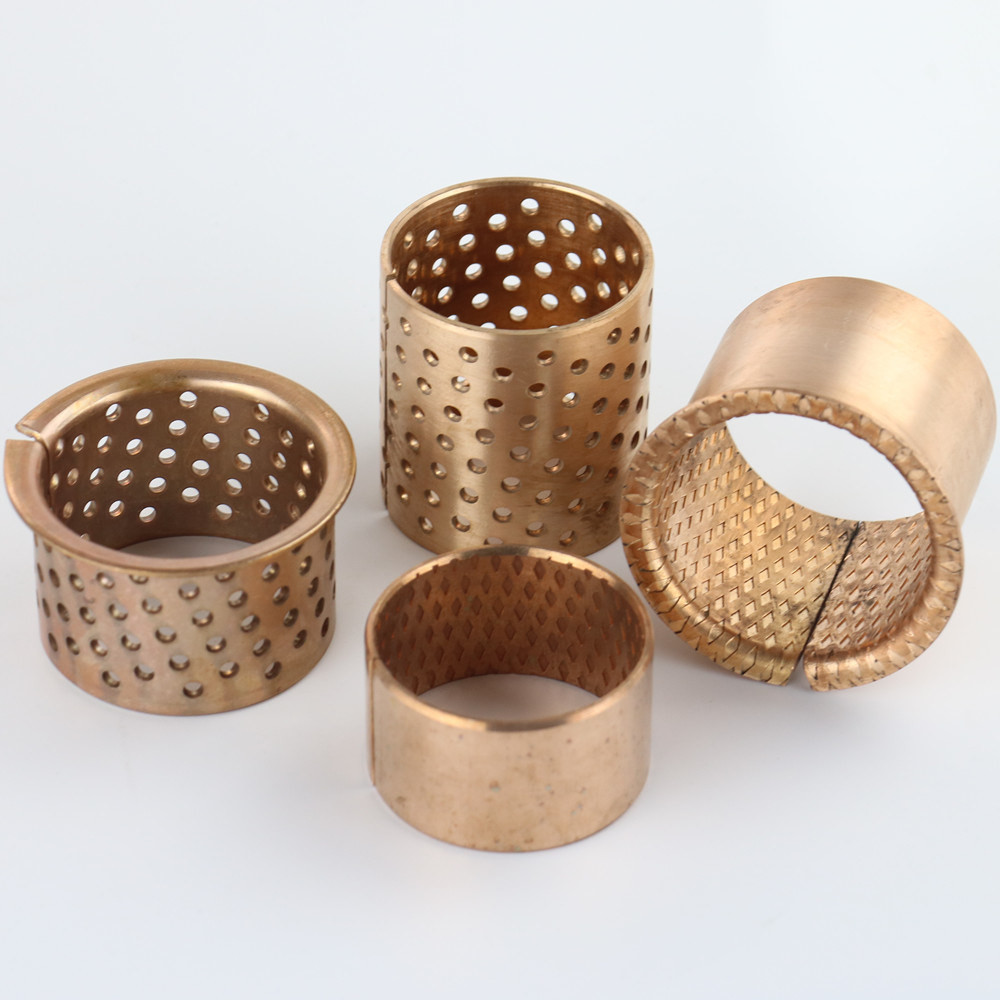

Rolled bronze bearings with lubrication pockets.
| material | Cu | Sn | P |
| CuSn8P0.3 | 91.3 | 8.5 | 0.3 |
Physical and Mechanical Properties
| | Value | Unit |
| Density | 8.9g | cm3 |
| Operating Temperature | -80~+200 | C |
| Hardness | 90-120 | HB |
| Load capacity | 75 | N/mm2 |
| Maximum Speed | 2.5 | m/s |
Gleitlagerbuchsen Wrapped Bronze Bushing FB090 Feature
- Easy fitting and lubrication
- High load capacity
- Inner side can be machined
- High level of thermal conductivity
- Minimum overall dimensions
- Chemical resistance
Gleitlagerbuchsen Wrapped Bronze Bushing FB090 Characteristics
Gleitlagerbuchsen Wrapped Bronze Bushing Application Area
Forest- and constructional machinery, agricultural machinery, cranes, forklifts, hoisting equipment etc.
Wrapped Bronze Bushing avaliabled in different types
Plain cylindrical bearings, flanged bearings, thrustwashers, slidingplates.
Plain Bearing Assembly
The bearings are intended to be pressed into a housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.
Axle/shaft – Bearing play
To the H9 tolerance of the slide bearing we recommend shafts with tolerance e7 or f7. If h-shafts are used, the bearing inner diameter should be machined up to tolerance F7.
Lubrication
Lubrication should be done through the shafts or radial through the housings. All common grease-types or oil can be used.
Special manufacturing
We can offer special sizes, shapes, forms or lengths upon request. Please contact us for a quotation or more information.
Technical Data
| Material: | Cu – 91.3% Sn – 8.5% P – 0.2% |
| Standard: | Cu Sn8. DIN 17662. CW453K |
| Sliding layer (thickness): | Homogeneous |
| Tensile strength Rm: | 450N/mm² |
| Yield strength Rp 0.2: | 250N/mm² |
| Elongation in % A10: | 0.4 |
| Hardness: | 90-120 HB |
| Friction coeff: | 0.08-0.25µ |
| Thermal conductivity: | 60W/m·K |
| Temperature range: | -100°C/200°C |
| Max. load static: | 120 N/mm² |
| Max. load, dynamic: | 40 N/mm² |
| Max. sliding speed (w.lubr.): | 2.5 m/s |
| Pv-value, Mpa x m/s, kont / int: | 2.8 |
| Counter material | |
| Recommended shaft hardness: | >210HB |
| Rec. shaft surface roughness (Ra) | 1.6 |
| Recommended tolerance: | e7-f7 |
| House: | H7 |
Gleitlagerbuchsen Application
090 bronze bushing is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.
Bearing forms available in standard dimensions
- Cylindrical bushes
- Flanged bushes
- Thrust washers
- Sliding plates
Wide Range Of High-Quality Bronze Bushings Entirely Supplied By China Bushings Manufacturer
