Flanged Bronze Bushings Cusn8 DIN1494 / ISO 3547 Lubrication 090 Diamond Pockets & Oil Grooves

Name: Flanged Bronze Bushings Cusn8 DIN1494 ISO 3547 Lubrication 090 Diamond Pockets amp Oil Grooves
Brand: REPLACE BRAND Metal-Polymer Bearings BEARINGS ()
Price: 1 USD

Flanged Bronze Bushings Cusn8 DIN1494 / ISO 3547 Lubrication 090 Diamond Pockets & Oil Grooves Manufactures

Brand Name : REPLACE BRAND Metal-Polymer Bearings BEARINGS ()

Model Number : BUSHING TYPE FLANGED PLAIN SLEEVE

Certification : DIN 1494, ISO 3547 STANDARD BUSHING

Place of Origin : Self Lubricating Bearings Manufacturers

MOQ : NEGOTIABLE

Price : Competitively Priced vs DU DX, Provides Lubricating Bush

Payment Terms : TT IN ADVANCE WESTERN UNION

Supply Ability : Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

Delivery Time : 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY

Packaging Details : WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS

Bushings Meterial : Bronze CuSn8P (DIN 17662),alternative CuSn6P available

Bushings Feature : Low-maintenance

Bushings Type : Sleeve, Flange, Washer

Lubrication : oil lubrication

BUSHINGS TOLERANCE : Housing ØH7 Bushing inner-Ø after mountingH9Shaft tolerancef7 to h8

BUSHING APPLICATION : Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

BUSHING MOUNTING : Housing: Chamfer min. 1.5 mm x 15-45°, for easy bushing alignment Shaft: Chamfer 5 mm x 15°, for easy insertion of the shaft

BUSHING Temperature strain : - 40 [°C] to + 250 [°C]

Bearing Bushing Factory Price : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Coated Self Lubricating Plain Bearing, ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing

characteristic : Втулки скольжения (биметаллические подшипники скольжения)

Dry slide bearing : Self Lubricating Plain Bearing Work in High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced costs & downtime. Non-galling. Increased reliability. Run dry & keeps running.

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Contact Now

Our flanged bronze bushings made of Cusn8 material strictly adhere to DIN1494 and ISO 3547 standards, ensuring their reliability and performance in various industrial applications. These bushings feature lubrication pockets in a diamond pattern (Lubrication 090) and oil grooves, which allow for efficient lubrication and reduced friction, thus enhancing the bushings' durability and lifespan.

The Cusn8 bronze material used in the manufacture of these bushings offers excellent corrosion resistance and wear resistance, making them suitable for use in harsh environments. The flanged design provides added stability and support, ensuring a secure fit and smooth operation.

We pride ourselves on producing high-quality bushings that meet or exceed industry standards. Wh you need bushings for new equipment or replacements for existing machinery, we can provide you with the perfect solution.

For more information or to place an order, please contact us. We are committed to providing you with exceptional products and services.

Made to order from china wrapped bushing diamond pockets, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance

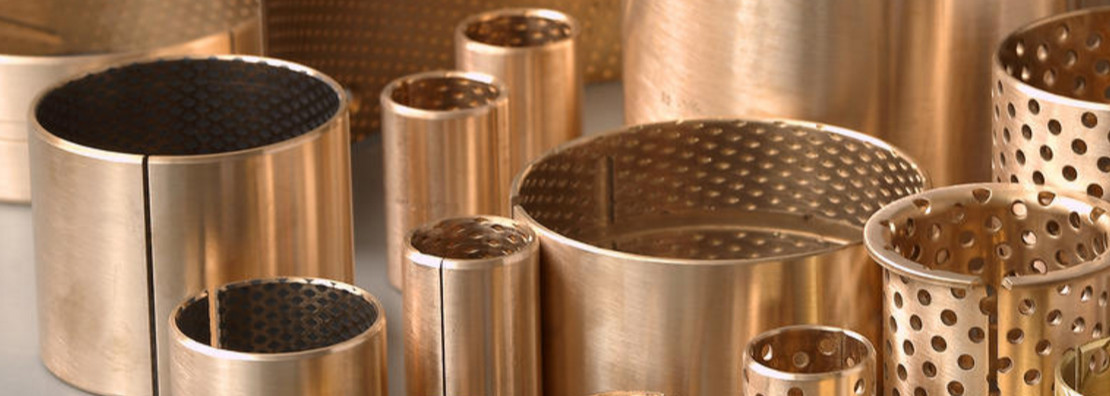

The diamond pockets are an excellent lubrication depot and keeping maintenance to a minimum.Bronze Sleeve Bushings 090 Series’ indentations on the sliding surface are replaced by through-holes.Wrapped bushing is a low maintenance bushing material,Economic solution for bronze bearing application due to a thin wall thickness. An initial greasing during installation is necessary, after that periodic greasing with oil or grease is mandatory.This allows the 090 Series to have a greater capacity to collect the lubricant compared with the indentations.Plain Bearings and Sleeve Bearings

Metric Bronze Cylindrical Flange Bushes CuSn8 with Lubrication 090

Cylindrical Bushes Flange & Sleeve Bushes Propertiese

Conomic solution for bronze bearing application due to a thin wall thickness. High load capability and good stability with low abrasion. Suitable for rough working conditions, good corrosion resistance.

Flanged Bronze Bushings Cusn8 DIN1494 / ISO 3547 Lubrication 090 Diamond Pockets & Oil Grooves

Bushings Structure

Support material:CuSn8P (DIN 17662) alternative CuSn6P available

Bushings Features

1.Easy for fitting and lubricating
2.High load capacity
3.Inner Diameter machineable parts are available against order
4.High level thermal conductivity
5.Minimum overall dimensions
6.Chemical resistance.
Initial pre-lubrication at assembly required...

FLANGE BUSHES Bronze Bearings made of CuSn8 with Lubrication Indents Bronze Wrapped Bearing with Oil Pockets(090 CYLINDRICAL BUSHES)Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip.The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents

Microsection

OPERATING PERFORMANCE
Dry	Poor
Oil lubricated	Good
Grease lubricated	Good
Water lubricated	Poor
Process fluid lubricated	Poor

Flanged Bronze Bushings Cusn8 DIN1494 / ISO 3547 Lubrication 090 Diamond Pockets & Oil Grooves

CuSn8 with
composition
Sn 8 %
P < 0.05 %
Cu Rest

Bearing Properties

Max.Load	Static	120N/mm²	Elongation	40%
	Dynamic	40N/mm²	Elongation	40%
			Temp	-100℃~+200℃
			Coefficient of friction	0.08~0.25
Max.speed(Lubrication)	Max.Speed	2m/s	Thermal conductivity	58W(m*k)-1
Max.PV	Max.PV	2.8N/mm²*m/s	Coef. of thermal expansion	18.5*10-6K-1
Tensile strength	Tensile strength	450N/mm²
Hardness	Hardness	HB 100-150

AVAILABILITY:Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs

Range Of Application

Agriculture machinery, truck cranes & construction machinery, suitable for impact loads.

Flanged Bronze Bushings Cusn8 DIN1494 / ISO 3547 Lubrication 090 Diamond Pockets & Oil Grooves

START YOUR PROJECT Bronze Wrapped Bearing with diamond pockets WITH AN APPLICATION ENGINEER
