The #2000 Metal Sliding Plate Oilless Bearing, renowned for its wear resistance, is a highly efficient and durable component designed for various industrial applications. Constructed from high-quality metal, this bearing exhibits excellent mechanical properties that ensure reliable performance even under heavy loads and high-speed rotations.

The oilless design eliminates the need for regular lubrication, significantly reducing maintenance costs and operational downtime. This feature makes the bearing particularly suitable for use in environments where lubrication is difficult or impractical.

The sliding plate mechanism of the bearing allows for smooth and precise movements, minimizing friction and wear. The wear resistance of the metal material ensures a long service life and consistent performance over time.

Wh you're upgrading existing equipment or installing new machinery, the #2000 Metal Sliding Plate Oilless Bearing with wear resistance is an excellent choice for improving operational efficiency and reliability. Its durability and maintenance-free design contribute to a more cost-effective and sustainable industrial operation. Contact us today to learn more about this innovative bearing solution and how it can enhance your industrial operations.

Oiles #2000 Oiles Bearing Metal Bearing

Economical bearings usable in any sliding direction

The Oiles 2000S series are self-lubricating bearings made of a newly developed special alloy, where solid lubricant mainly made of graphite is dispersed impregnated with more oil.

OILES #2000 is a composite multilayer bearing with a sliding surface of special sintered material and with a steel-structured back metal. The sintered layer employs dispersion sintering of solid lubricant that mainly composes special copper alloy and graphite.

OILES BEARING > Metal Bearing

Characteristics
Dispersion sintering of solid lubricant allows the bearing to be successfully used in arbitrary directions of movement and stand up to very minute motion.
It requires no oiling.
It offers excellent load and wear resistance,or speed variations.
The sample and the plate material for additional processing are available.

Oiles 2000S

Sintered oil-impregnated bearings with dispersed solid lubricant

Self-lubricating , Maintenance-free Bushing sleeve

Oiles 2000S | Bearings

■ Serviceable without the need for lubrication. Demonstrates higher performance when greased.
■ Distributed solid lubricant allows motions in any direction.
■ Features low coefficient of friction and quite superior wear resistance.
■ Lower prices than bearings with copper alloy bases.
* The 2000S was renamed from the 2500.

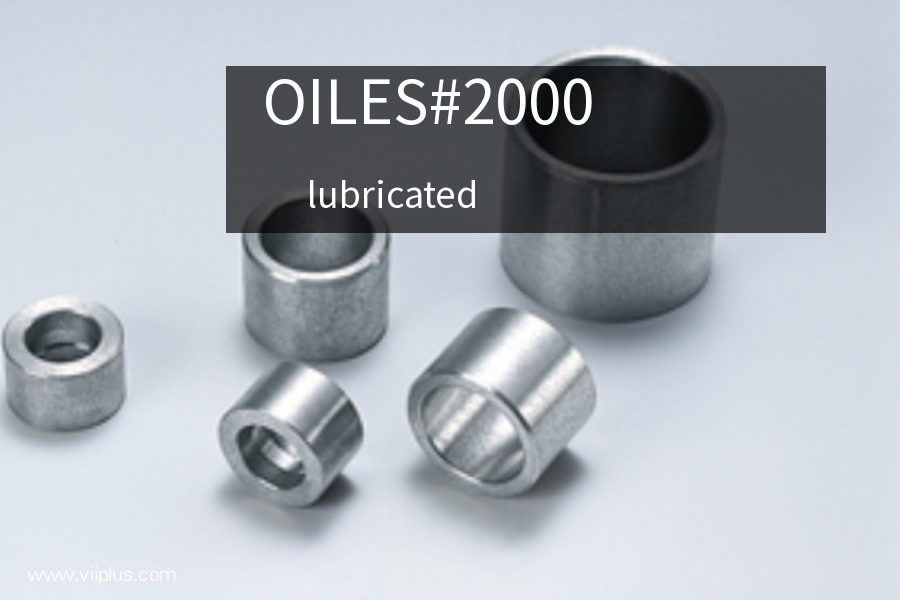

Oilles 2000 bushing sleeve is a Sintered Multi-Layer Bearings bushing sleeve made of a special sintered material which forms the sliding surface and the steel material forms the support.

The sintered layers are of a special copper-nickel alloy containing a uniformly dispersed lubricating solid, the main component of which is graphite. Solid lubricants will be released onto the Sintered Multi-Layer Bearings bushing sleeve surface when wear occurs. This ensures a lower friction coefficient during operation.

In addition, these sintered layers are impregnated with oil. Applications covered include wear plates for automotive tools, industrial robots, wear plates for plastic injection molding machines and link Sintered Multi-Layer Bearings bushing sleeve, construction machinery, etc.

Feature

· Dispersed solid lubricant allows motions in any direction and offers superior performance for minute movements.

· Serviceable without the need for lubrication.

· Features superior load resistance, speed characteristics, and wear resistance.

· Standard Oilles 2000 bushing sleeve products and plates for additional machining are available in various sizes.

Characteristics

Service range

The values ​​in parentheses are the static pressures of the Sintered Multi-Layer Bearings bushing sleeve , which are the pressures of the Sintered Multi-Layer Bearings in non-moving or very low-moving applications (≦ 0.0017 m / s).

Mechanical properties

· The value shown above are for sintered layer.
· The values shown above are typical values, not the standard values.

Oil Impregnation Method

If the Oiles 2000 material is purchased and used by finishing it, it should be oil-impregnated after machining and then assembled in the housing. When the bushing sleeve Sintered Multi-Layer Bearings is stored for long or washed, it should be oil-impregnated again and then assembled in the housing. For the method, see the description about the oil impregnation method shown on page 250. Dip the machined bushing sleeveSintered Multi-Layer Bearings in lubricating oil for 24 hours or more before using it, if oil impregnation (by heating) is disabled.

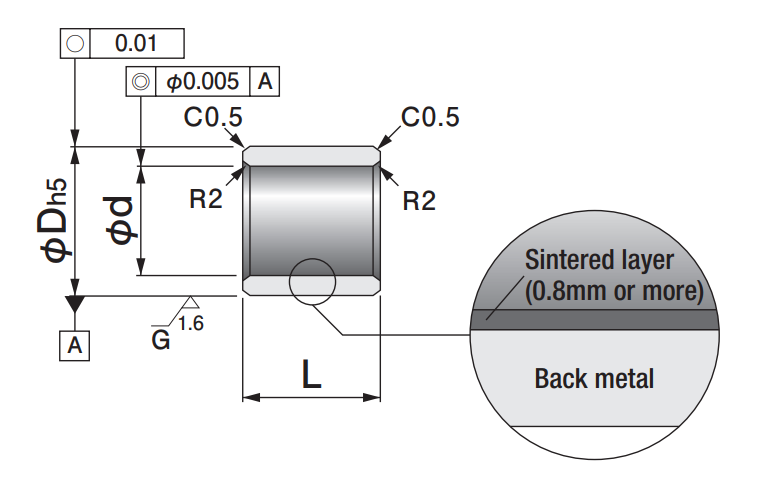

Machining accuracy (bushing)

Classes here are in JIS standard.

This Oilles 2000 bushing sleeve product demonstrates satisfactory performance at the slide surface roughness of Rz6.3 to 12.5μm.

Oilles 2000 bushing sleeve Size sheet:

(e.g.) I.D. is 35mm, O.D. is 44mm, and length is 50mm.

The dimensional tolerances are the values measured at +25℃.

·By the combination of the highly precise article, clearance of a mating shaft and the bearings become smaller than normal combination. When use under the foreign matter environment ,or operating frequency are high, please contact us.

·The dimensional tolerances are the values measured at +25℃.

Availability

· Standard cylindrical bushes, flange bushes, thrust washers and slats are available.

· Lead-free type is also available

· All special designs are produced as required

Application

Oilles 2000 bushing sleeve has been widely used in high load with lower friction and good wear resistance requested mechanical parts where oil given is difficult such as automotive die wear plate, industrial robots, injection wear plate, injection tie-bar bushes, construction machines self-lubricating bushing sleeve bearings etc.
