Straight Oilless Sliding Bearings & Flange Stamping Die Components DIN

Name: Straight Oilless Sliding Bearings amp Flange Stamping Die Components DIN
Brand: Oilless Sliding Materials
Price: 1 USD

Straight Oilless Sliding Bearings & Flange Stamping Die Components DIN Manufactures

Brand Name : Oilless Sliding Materials

Model Number : Straight type bushing,flange

Certification : ISO 9001

Place of Origin : Self Lubricating Bearings Manufacturers

MOQ : negotiable

Price : Competitively Priced vs , Provides Lubricating Bush

Payment Terms : T/T

Supply Ability : Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

Delivery Time : 4 - 20 BUSINESS DAYS

Packaging Details : EXPORT CARTON WOOD PALLET WOODEN CASE

Bushing Type : Sleeve,Flange,Washer

Feature : Type Straight Bush Lubrication Oil-Free Material Copper Alloy

Size : JDB BUSH (OILLESS) 50 X 62 X 50 mm long

Bearing Bushing Factory Price : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Coated Self Lubricating Plain Bearing, ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing

characteristic : Втулки скольжения (биметаллические подшипники скольжения)

Dry slide bearing : Self Lubricating Plain Bearing Work in High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced costs & downtime. Non-galling. Increased reliability. Run dry & keeps running.

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Contact Now

Straight Oilless Sliding Bearings and Flange Stamping Die Components are designed and manufactured according to DIN (Deutsches Institut für Normung e.V.) standards. DIN is the German Institute for Standardization and its standards are widely recognized and adopted in various industries worldwide.
The straight oilless sliding bearings, also known as plain bearings or sliding bushings, are designed to operate without the need for lubrication oil or grease. They rely on the inherent friction-reducing properties of the bearing material and the mating surface to provide smooth and reliable motion. These bearings are commonly used in applications where lubrication is difficult or undesirable, such as in food processing or cleanroom environments.
The flange stamping die components are precision-engineered parts used in stamping dies. They are manufactured to exacting DIN standards to ensure consistent quality and reliability in the stamping process. These components play a crucial role in the production of stamped metal parts, ensuring precise shaping and dimensional accuracy.
By adhering to DIN standards, manufacturers of straight oilless sliding bearings and flange stamping die components can ensure that their products meet the highest industry standards for quality, performance, and safety. This allows them to provide customers with reliable and dependable components that are suitable for a wide range of applications.

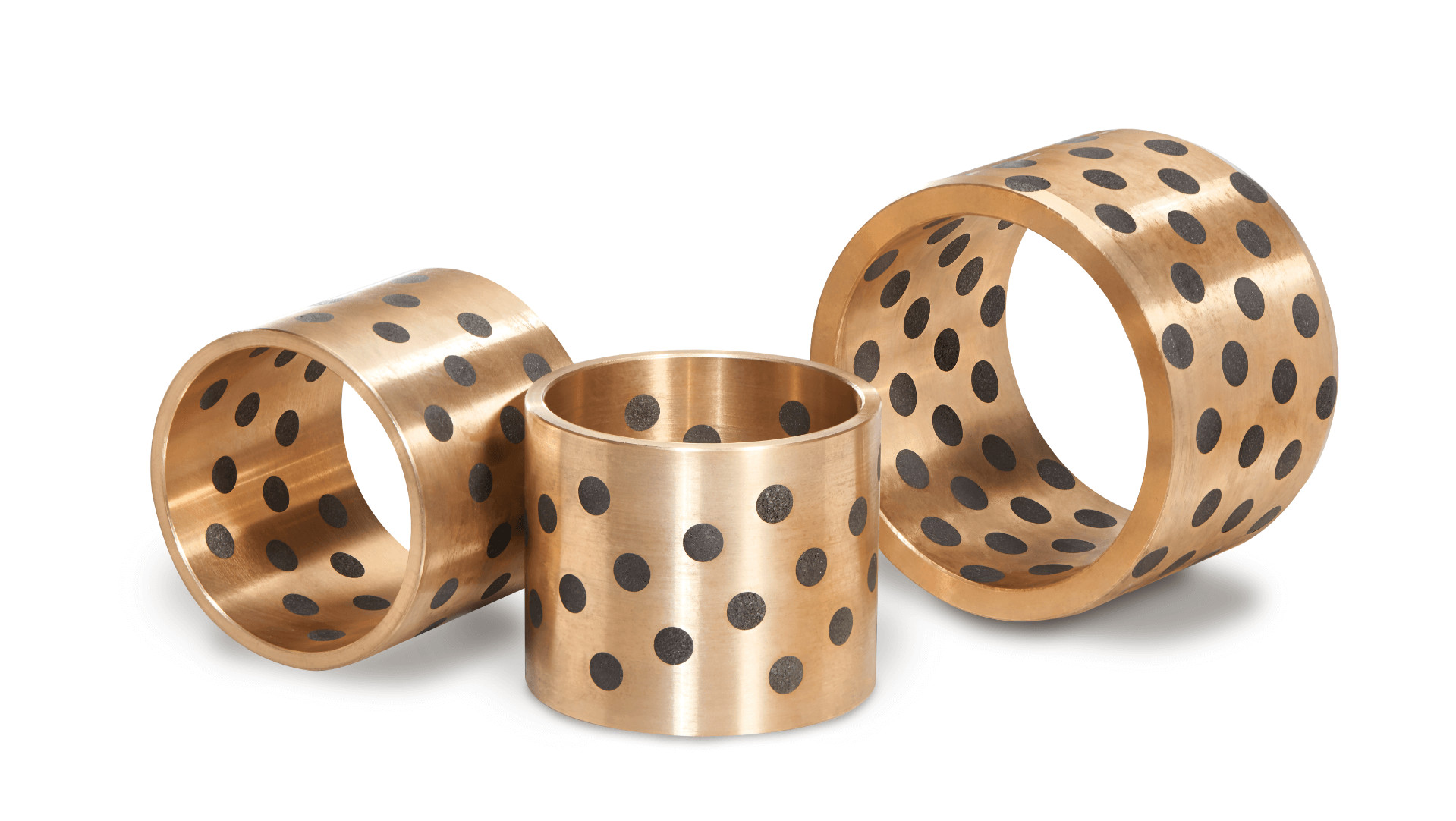

JDB BUSH (OILLESS) 50 X 62 X 50 mm long Type Straight Bush Lubrication Oil-Free Material Copper Alloy

Injection Guide Bushs

Injection Guide Bushs for plastic injection mol

Bronze bearings are also ideal in applications where they are exposed to damp conditions, including marine environments, thanks to their high resistance to corrosion. The bearings, bronze graphite bearings, and self-lubricating bronze bushings with solid lubricate manufactured by VIIPLUS are used in applications with heavy loads and low speeds. It is an ideal material in applications where there is friction between two metals due to its low friction coefficient, thermal transmission …etc.
Online China source for custom machining bronze bearing & bushings as well as standard bronze bearings metal parts. solid bushing, bronze with lubricant plugs embedded, DIN /ISO International Standard Code, Maintenance-free we are specialized in the development and production of inlaid solid lubrication bearing, slide plate, slide unit, and slide block. Excellent manufacturing equipment. The main processes are all processed by high-precision CNC machine tools.

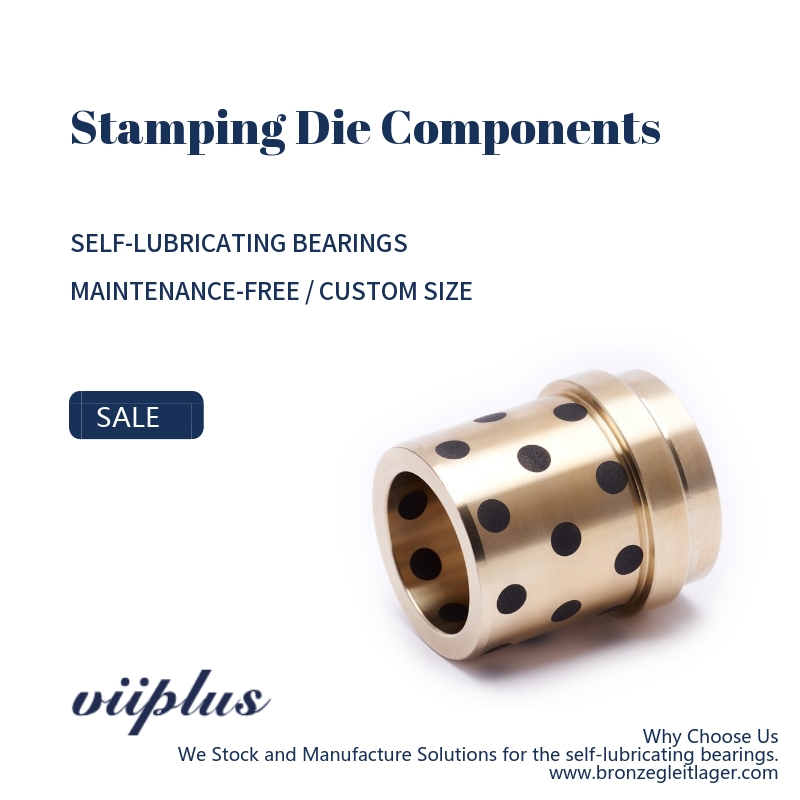

Straight Oilless Sliding Bearings & Flange Stamping Die Components
Stamping Die Components Sliding bearing, Self-lubricating bearing, Guide bushes, bronze, maintenance-free with collar Standard, Solid lubricants embedded bearing, Porous bearing, Standard Components for Sliding Material, Standard Components for Sliding Material, made to order from china. Tolerances: The bore for the bearings should correspond to ISO tolerance H7.The tolerance h6 to h7 is recommended for the shaft. Sliding Resin Bearing Bronze Bushing Materials｜Standard Components for Sliding Material｜Products｜VIIPLUS INTERNATIONAL Supplier.
Customized Size Stamping Die Components Similar Oilless Misumi Standard.
Material: Bronze with graphite inserts.
Material category: Metallic matrix

Chinese Code	International counterparts				Applications
Chinese Code	International ISO1338	Japan Jis	(USA) ASTM(UNS)	Geman DIN	Applications
CuZn25Al6FeMn3	CuZn25Al6FeMn3	H5102 CAC304	B30-92 C86300	DIN1709 G-CuZn25A2.0598	High-load,low-speed,general use
CuZn25Al6FeMn3	CuZn25Al6FeMn3	H3102 CAC304	B30-92 C86300	DIN1709 G-CuZn25A2.0598	Super high load,low-speed,high duty
CuAl10Fe3	CuAl10Fe3	H5114 CAC703	B30-92 95800	DIN1714 GB-CuAl10Nl/2.1096	Medium load,medium-speed,general use
CuSn5b5Zn5	QSn5-5-5	H5111 CAC406	B30-92 C83600	DIN1705 G-Cu5n5ZnPb/2.1096	Medium load,medium-speed

Solid Lubricant

Features

Typical application

Graphite+add

Excellent resistance against chenical attacks andlowfriction .Temp limit 400 °C

Suite for general machines and under an atmosphere

Graphite +add

Lowest in friction and googd of water lubrication,Temp.limit 300 °C

The ship, hydraulic turbine, gas turbine etc.

Serving a Wide Range of Industries
We have extensive experience serving the needs of a wide range of industries across the country:
Hydraulics (sleeves, shoes/slippers)
Mining (bearings, gears, engine components)
Construction (bearings, gears, engine components)

Marine (motor and stern drive components, bearings)
Power Transmission (gears, bearings)
Rail (brake and engine components)
Oil & gas
Agricultural
Boat docks
Pumps
Industrial equipment
Cylinders
Forestry
Paving
Technical data:
Material properties:
Base alloy: CuZn25Al6FeMn3
Density: 8.0 g/cm3
Tensile strength Rm: 750 N/mm2
Yield point: 450 N/mm2
Ductile fracture A5: 5-8%
Friction coefficient: 0.05 - 0.12
Maximum speed: 15 m/min
Thermal conductivity: 50 W/m x k
Thermal expansion coefficient: 18 x 10-6
Electrical conductivity: 7-8 m/(Ω x mm2)
Solid lubricant content: 25-30 %
