Metal Polymer Composite Bearings POM Split Bushes DIN 1494/ISO 3547

JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
Contact Now

Metal Polymer Composite Bearings POM Split Bushes DIN 1494/ISO 3547

Brand Name : VIIPLUS BUSHINGS SUPPLIER

Model Number : BUSHINGS

Certification : ISO 3547 DIN 1494 Assembly Standard Tolerance

Place of Origin : Composite plain cylindrical bushings manufacturer

MOQ : 1000 Piece/Pieces

Price : $0.05 - $1.00 / Pieces

Payment Terms : TT in advance,Western Union

Supply Ability : Special Customized Lubricating Bushings Manufacturing

Delivery Time : 7~15 work days

Packaging Details : Packaging: Export carton; Wooden case ; Wood pallet.

Meterial : Steel backed bushing with Composite Material

Plating : Tin or copper

Type : Wrapped Bushes,Flange Bushing Thrust Washer

Lubricating : POM-based Self-Lubricating Metal-Polymer

Customized : metric size,inch size,based on drawing or sample

Application : cranes, truck cranes, tail gates, harbour equipment and agricultural machinery and construction machines.

Bearing Bushing Factory Price : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Self Lubricating Bronze POM Bushing, Metal polymer bushings

POM BUSH : marginally lubricated bushings for grease or oil lubricated applications · Standard split bushings contain grease indents in the sliding layer; plain sliding ...

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Contact Now

Metal Polymer Composite Bearings, specifically POM (Polyoxymethylene) Split Bushes that adhere to DIN 1494/ISO 3547 standards, offer a unique combination of properties that make them ideal for a wide range of industrial applications. These bearings are composed of a metal polymer composite material that provides excellent mechanical strength, wear resistance, and corrosion resistance. The POM material, known for its high stiffness and low friction, ensures smooth and efficient operation.

The split bush design allows for easy installation and removal, making maintenance and replacement a breeze. Additionally, the DIN 1494/ISO 3547 standards ensure that these bearings meet the highest quality and performance requirements, guaranteeing reliability and durability.

Metal-polymer composite bearing POM split bushings DIN 1494/ISO 3547 Used in machinery, equipment or other industrial environments, they provide a robust and reliable solution to ensure smooth and efficient operation.

Split bushing supplier, China POM, Wrapped sliding bearing, china wrapped bushing, steel/POM sliding layer, DIN 1494/ISO 3547, Low-maintenance, It consists of a steel backes bushing and a sliding layer with bronze powder intermediate layer.

These raw material plates are then cut to a rectangular shape, then wrapped and calibrated to the right size.

POM-based Self-Lubricating Metal-Polymer

COMPOSITE BEARING STRUCTURE: /POM-BASED BEARINGS AND THERMOPLASTIC BEARINGS


Metal Polymer Composite Bearings POM Split Bushes DIN 1494/ISO 3547

1.The superior performance of plain metallic polymer bushings is in its exclusive composite structure:

2.Anti-friction impregnated overlay enriched with POM and fillers or extruded thermoplastic tape

3.Porous sintered bronze interlayer for high wear resistance

4.Steel or bronze support for high mechanical resistance

Metal Polymer Composite Bearings ,manufacturer of plain bearings, offer a wide range of metal polymer bearings with /POM Bushes,Gerolltes Verbundgleitlager Stahl / Acetalharz (POM) - mit Schmierstoffdepots

The sizes are according to DIN 1494/ ISO 3547 with tolerances to be press fitted into a H7 housing for a h8 shaft tolerance.

Metal Polymer Composite Bearings POM Split Bushes DIN 1494/ISO 3547

Sf-1 simply stands for three layers of composite, -1 refers to material description. Sf-1 bearings are made of three layers of rolled steel, sintered spherical bronze powder in the middle, and a mixture of and lead rolled on the inner surface. It has the characteristics of small friction coefficient, high wear resistance and good corrosion resistance and no oil lubrication.

Metal Polymer Composite Bearings POM Split Bushes DIN 1494/ISO 3547


Bronze Gleitlager Lubricating Bearings lead-free yellow POM Bushes

1. Self-Lubricaying Layer POM 0.3-0.5mm. After rolling process completed, POM are filled in intersice of bronze layer, lubrication indents are stamped, which are full of oil grease, which will be removed and transferred on the mating surface, forms a physically lubricating film, which will reduced the firction coe. and protect the mating shaft.
2. Porous bronze layer; The layer provides bonded strength of self-lub. Layer.
3. Steel Backing The layer provides load & thermal conductivity
4. Copper / Tin layer.

Detailed information

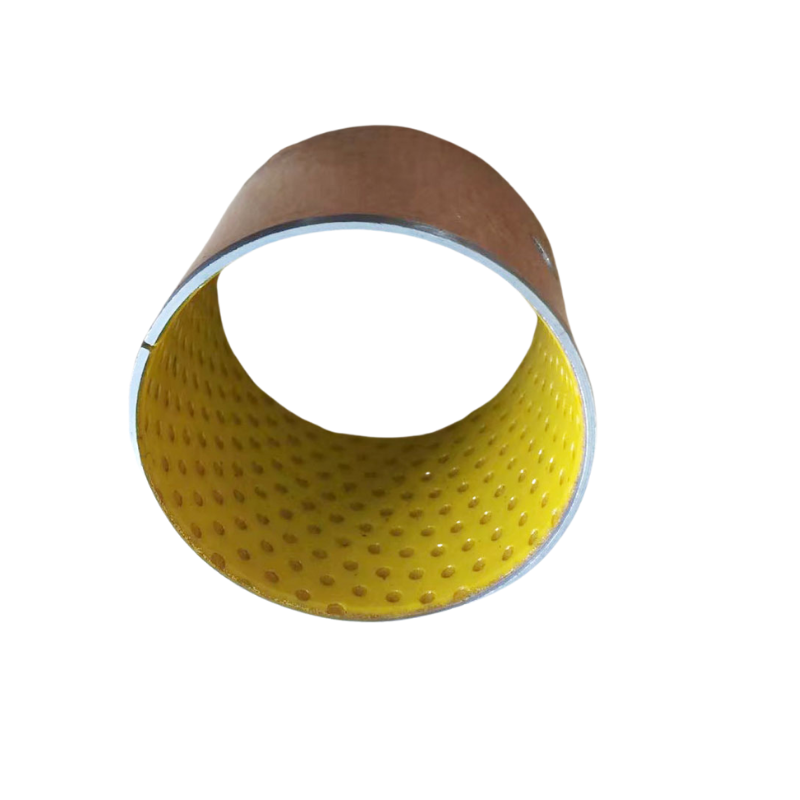

VSB-20 This is a steel based, spherical bronze powder as interlayer and overlaid by a layer of YELLOW/, the surface of which is provided with oil indentations. Features: the special resin supply with excellent wear resistance and very lower friction, can be keep good work condition even without oil.

Metal Polymer Composite Bearings POM Split Bushes DIN 1494/ISO 3547

1. POM 0.03-0.50mm, anti abrasion, low friction coefficient even no oil given.
The inside of the bearing is full of indentions, which must be filled with grease
before installing.
2.Bronze powder layer, 0.2-0.35mm, high load capacity and anti-abrasion, good
thermal conductivity, which also further strengthen the combination of the POM
layer and steel plate.
3. Low carbon steel, which improved, load capacity & thermal conductivity.
4. Copper/Tin plating layer, 0.002mm, anti-corrosion.

Typical application

Recommended for applications involving intermittent operation or boundary lubrication, such as suspension joints, kingpin assemblies and stub axles of tucks in automotive, grinding, and milling machines, ram guide plates in building industry gearbox, clutch, bale trips in agricultural equipment.

Metal Polymer Composite Bearings POM Split Bushes DIN 1494/ISO 3547

STRUSTURE

1. POM thickness 0.30~0.50 mm. It provides high wearresistance and low friction even with only minute volume oflubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm. A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation characteristics.

TECHNICAL DATA

· Metal-Polymer Composite Bushing Material
· Steel Back + Porous Bronze Sinter +
POM with Lubrication Indents

Metal Polymer Composite Bearings POM Split Bushes DIN 1494/ISO 3547

Sliding layer POM
with or without
lubricant indents
for machining
Porous Bronze
Sinter
Steel Back

Maximum load bearing pressure 70N/mm² Coefficient of frictionμ 0.05~0.25
Temperature range -40℃~130℃ Allowable maximum PV value

22N/mm²·m/s

Maximum sliding speed 2.5m/s

AVAILABILITY

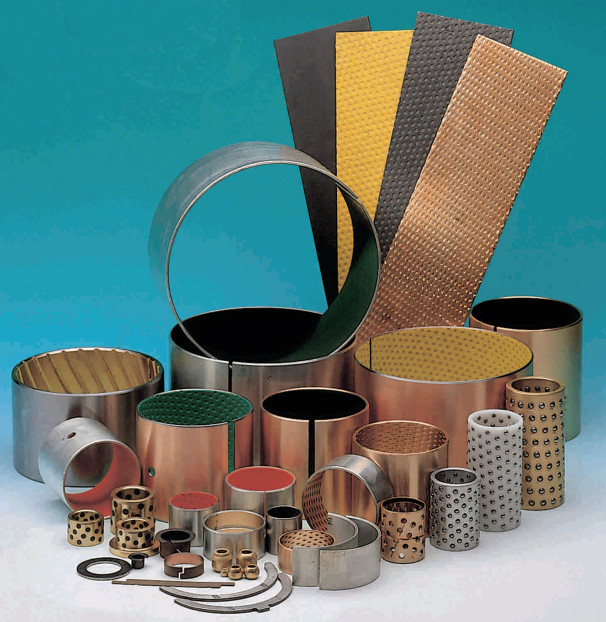

Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
· Sliding plates

Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs

APPLICATION

cranes, truck cranes, tail gates, harbour equipment and agricultural machinery and construction machines.
