The steel base self-lubricating plain bearing with sintered tin bronze layer offers a robust and durable solution for various industrial applications. The steel base provides excellent structural support and rigidity, while the sintered tin bronze layer ensures smooth and efficient operation through its self-lubricating properties.
The sintered bronze layer exhibits high wear resistance and load-bearing capacity, making it suitable for high-demand applications. The self-lubricating nature of the bearing reduces the need for regular lubrication, thereby minimizing maintenance requirements and operational downtime.
Wh used in heavy machinery, automotive components, or other industrial equipment, this steel base self-lubricating plain bearing with sintered tin bronze layer ensures reliable and long-lasting performance.
Polyoxymethylene (POM) Bushing,
| ITEM | DESCRIPTION |
| 1 | Bushing D30/34 L20 |
| 2 | Bushing D35/39 L20 |
| 3 | Bushing D44/40 L20 |
| 4 | Bushing D44/40 L12 |
dry sliding bearings have a steel base and a 0.2 to 0.4 mm sintered tin bronze layer.
Key Features
- Low maintenance operation with initial lubrication
- High pv-value
- Low wear
- Low seizure
- Rotating, oscillating and axial motion possible
- Available in a wide range of standard dimensions in accordance to ISO 3547
An extensive inventory of bronze bushings offering customers direct delivery service. Fast direct delivery service for quality products. POM wrapped acetal bearings are comparable with PM POM, PCM M, EGB E40, EGB E50 en PAP P20.
For many high loaded applications maintenance free bearings do not achieve the needed service life within an acceptable period. Reasons could be:
- Long-term stress
- High edge load
- Operation in rough environment
| 1 | Lubrication indentation |
| 2 | Polyoxymethylene (POM) |
| 3 | Tin bronze |
| 4 | Steel layer |
| 5 | Tin layer |

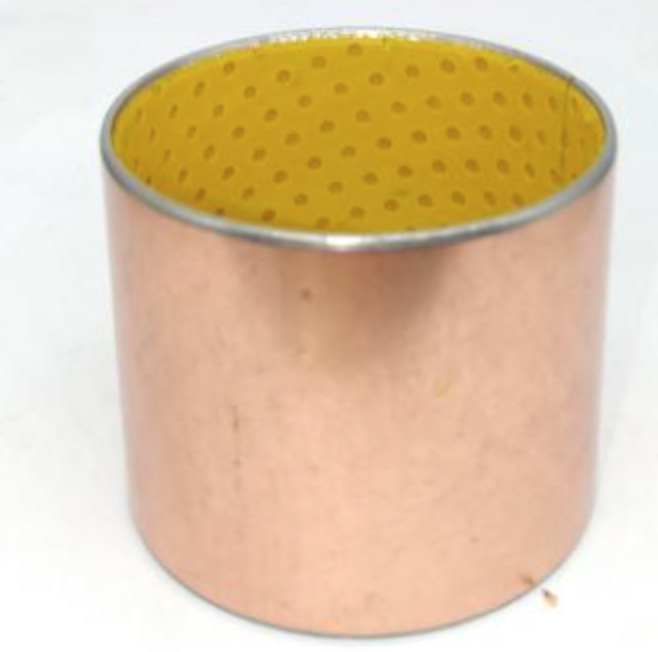

POM Metal-Polymer Plain Bearings Grease Lubricated - POM - Oil or grease-lubricated bearings - Metric & Imperial Sizes
Standard POM bush Components available from stock
• Metal-Polymer Composite Bushing Material
• Steel Back + Porous Bronze Sinter +
POM with Lubrication Indents
• POM provides maintenance-free operation • POM has a high pv capability • POM exhibits low wear rate • Seizure resistant • Suitable for temperatures from -40 to +120 °C • High static and dynamic load capacity • Good frictional properties • No water absorption and therefore dimensionally stable • Compact and light • Suitable for rotating, oscillating, reciprocating and sliding movements • POM bearings are prefinished and require no machining after assembly
These POM Bush Bearings are widely used in the Machinery Industry
(Inside Diameter x Outside Diameter x Length)
- Lightly lubricated POM bushings for grease or oil lubricated applications
- Standard parts contain grease marks in the slip layer; single sliding layer available on request
- Optimal performance under relatively high loads and low speeds
- Suitable for linear, oscillating and rotary movements
- Wide range of parts available from stock
Bearing forms available in standard dimensions
- Cylindrical bushes
- Flanged bushes
- Thrust washers
- Sliding plates
Bearing forms made to order: cylindrical bushes with non-standard lengths and wall thickness, flanged bearings, hexagonal and square bores, liner on outer diameter, customized bearing designs
POM Composite Bearing, Replacement POM Bush Bearing | Self-lubricating Composite Bushings
POM composite bushings are referred to as prelubricated because their material is designed to operate with marginal lubrication. These bushing type effectively fills the gap between fully lubricated and dry sliding bushings.We offer a wide range of straight POM composite bushings. The advantages of these sleeves are:
• maintenance-free operation
• very good frictional properties
• high load capacity
• high sliding speed
• low working clearance
Metal-Polymer Composite Material
POM Composite Bearing Benefits
• Marginally lubricated bearing material for grease or oil lubricated
applications
• Standard parts contain grease indents in the sliding layer; plain
sliding layer available by request
• Optimum performance under relatively high loads and low speeds
• Suitable for linear, oscillating and rotating movements
• Wide range of parts available from stock
POM Bearing Metal-polymer bearing lubricated with grease
Pom Composite bushing Characteristics
Pom Composite lubricated bushing can be used for grease or oil lubrication applications, or in an oil-free environment
The standard parts contain grooves in the sliding layer of the contact parts, which can store grease or friction debris.
The smooth sliding layer can be designed and provided upon request
Composite bearing sleeve has the best performance under relatively high load and low speed, and the highest relative life
Composite bearings are used in environments of linear, oscillating and rotational motion
All kinds of bearing parts are available from stock
A brief introduction to polyformaldehyde (POM) materials
1. With high mechanical strength and rigidity;
2. The Maximum fatigue strength;
3. Good environmental resistance and organic solvent resistance;
4. Strong resistance to sustained impact;
5. Widely used temperature ranges from -40℃ to 120℃.
6. Good electrical properties.
7. Good recovery.
8. with their own lubrication, good wear to hold;
9. Excellent dime
Melting point of 175 ° C
Density 1.42 g/mL at 25 °C
Flash point 158 °F storage condition 2-8°C
Self-lubricating oil-free composite bearing structure composition
Wrapper Bronze Bearing characteristics
| Performance indicators | Date |
| Maximum load | Static load | 250N/mm² |
| Dynamic load | 150N/mm² |
| Maximum linear velocity V | Grease lubrication | 2.5m/s |
| High PV value | Grease lubrication | 2.8N/mm²・m/s |
| Coefficient of friction | Grease lubrication | 0.05~0.25 |
| The use of temperature |
-40℃～+130℃ |
| Coefficient of thermal conductivity | 4W/m・K |
| Coefficient of thermal expansion | 12×10-6/K |
Logistics and transportation equipment applications
The noise of traditional bearing, short maintenance cycle and service life, and high maintenance cost limit the normal operation time of equipment, especially transportation equipment and field operation equipment. The application of VIiPlUS POM BUSHING self-lubricating bearing can not only solve these problems, but also improve the comfort level of equipment operation.For example, the use of lubricating oil or one-time painting can solve the process maintenance and high shutdown costs, while avoiding environmental pollution.Reliable, light and excellent bearing solutions Pom Composite Bushing,Pom Bushings,Pom Sleeve Bushing
Pom Composite Bushing are widely used in logistics applications
he railway, The inter-city rail, shipbuilding, space, Forklift truckT
Viiplus provides the railway and other rail transport industry with gear boxes, motor suspension system and POM BUSHING components.
Title: home
URL: http://home.links.nl
Today, viiplus light and maintenance-free bearings are used by all major commercial and aircraft manufacturers and tier 1 suppliers for fixed and rotary wing aircraft. Our bearing solutions are used in a wide range of aeronautical applications, from the landing gear, to flight control and engines, to a variety of customized applications in the passenger and aerospace seats sector.
Our aircraft bearing solutions are used in a variety of aerospace applications from landing gear, flight control and engines to passenger seats, as well as in a wide variety of customizations for the aerospace industry
You can customize various POM oil-free self-lubricating bearings from us, and design related drawings
Here you can choose the bearing size of the type part, more sizes you can refer to PDF.
Click here for PDF for more product information
Wrapped Composite Sliding Bearing .pdf
